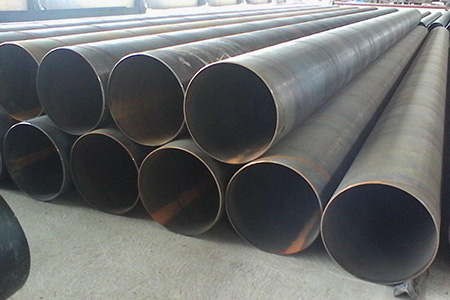

SSAW Steel Pipe

Pipe Type:SSAW Pipe,Spirally Submerged Arc Welding Pipe

Application: Used for oil/gas/water Transmission,Engineering/Offshore/Onshore projects..etc

Specification: Outer diameter:219mm-3500mm

                        Wall thickness: 5mm-26mm

                         LENGTH:5.8/6/11.8/12/18/32meters

Standard & Grade:ASTM A53: Gr.A, Gr.B;API 5L:Gr.A,Gr.B,X42,X46, X52,X56,X60,X65 PSL1 and PSL2;

ASTM A252

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

Surface: Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Packing: Bundled,Plastic Caps Plugged,Waterproof Paper/Bag Wrapped

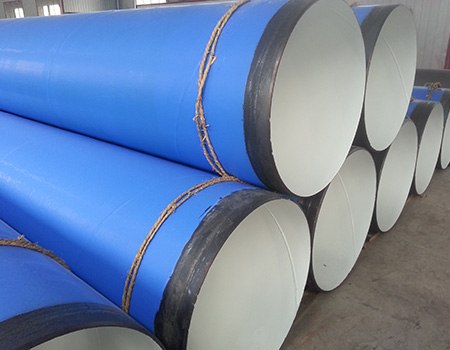

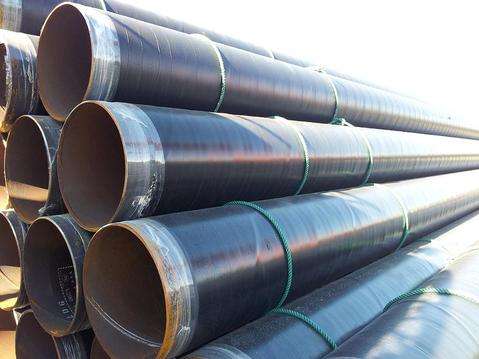

PE Coated SSAW Pipe

Type:PE Coated Pipe, 2PE Coated Pipe, 3PE Coated Pipe

Application: Used for for natural gas, petroleum, water & sewage, and pipe systems

Specification: Outer diameter: 219mm~2020mm

                        Wall thickness: 5mm~25mm

                        LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard:DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.

Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electrci Resistance Welded

End: Plain End/Bevelled End, Burr Removed

Surface:Two Layer Polyethylene Coating (2mm~4.5mm)

Packing: Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

FBE Coated SSAW Pipe

Type: FBE (Fusion Bond Epoxy) Coated Pipe, Epoxy Coated Carbon Steel Pipe

Application:Used for natural gas, petroleum, water & sewage, and pipe systems

Specification: Outer diameter: 219mm~2020mm

                         Wall thickness: 5mm~25mm

                         LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard: DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.

Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electrci Resistance Welded

End:Plain End/Bevelled End, Burr Removed

Surface:One Layer / Double Layer FBE anti-corrosive coating powder (200um~800um)

Packing: Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle
