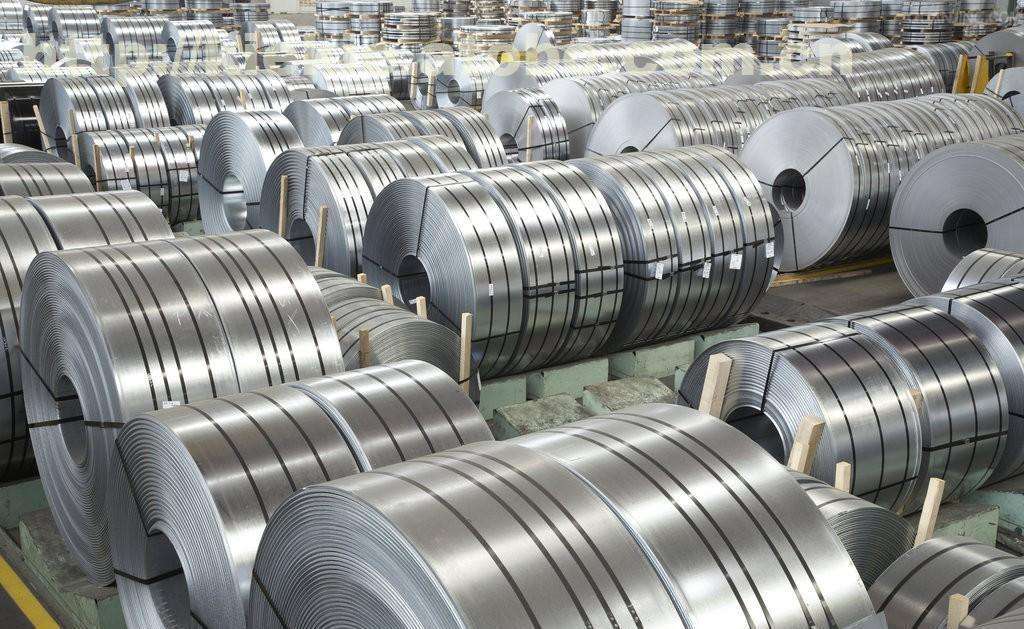

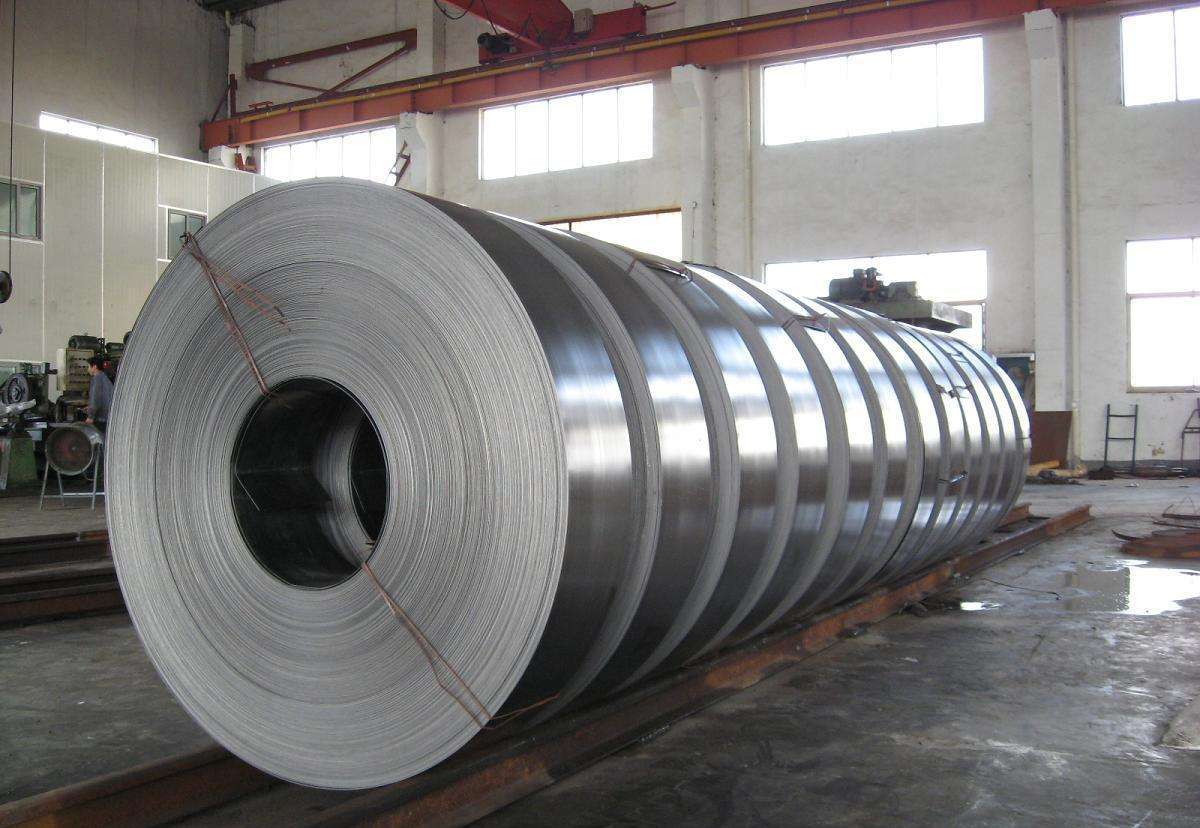

Stainless Steel Coil

Pipe Type: Stainless Steel Strip Coil, 304 Stainless Steel Coil, 316L Stainless Steel Coil

Application: In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Specification: Cold Rolled Thickness: 0.4 ~ 3.0mm

                         Hot Rolled Thickness: 3.0 ~ 80.0mm

Standard: ASTM A213, ASTM A240, ASTM A312, ASTM A789, JIS G3459

Steel Grades: 201, 202, 304, 314L, 316, 316L, 310S, 317L, 321, 409L, 430

Process Method: Cold Rolled, Hot Rolled

Surface: Annealed, Pickling, Polished

Packing: Waterproof Paper Wrapped, Packed in Wooden Cabins

Contact us :

Email:sales@sunrisesteelgroup.com

Whatsapp:+0086-13875806221

Phone:+0086-13875806221

Skype:wycsky1

DescriptionProcessEquipmentDimension Inquiry
Items Stainless Steel Coil
Standard

GB/T14976-2002、GB13296-91、GB9948-88ASTM/ASME A213/SA213、ASTM/ASME A312/SA312

ASTM/ASME A269/SA269、DIN 17458-85、DIN 17456-85、JIS G 3459

JIS G 3463、JIS G 3448、JIS G 344
Size Width: 3.5mm~1550mm
Thickness:  0.025mm~4mm
Industrial process hot rolled,hot expanded,cold drawn,and hot galvanized
Tolerance

a) Outer Diameter:6-32mm:+/- 0.2mm,

 32-38:+/-0.15mm,42-60:+/-0.20mm,60mm:+/-0.25mm

b) Thickness: +/- 10%
c) Length: +/- 5mm
Surface 180G, 240G, 320G Satin / Hairline
400G, 600G Mirror finish
Application

steel bridge,boiler plate,shipbuilding steel,steel armor,automotive steel,

roof plate,structural Steel,electrical steel etc.
Test

Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT

Material Composition 201 202 304 316L 430
Chemical Composition  C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5
Mo 2.0-3.0
Material Item 201 202 304 316
Mechanical Property Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90
