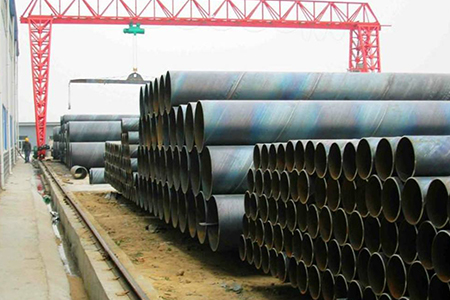

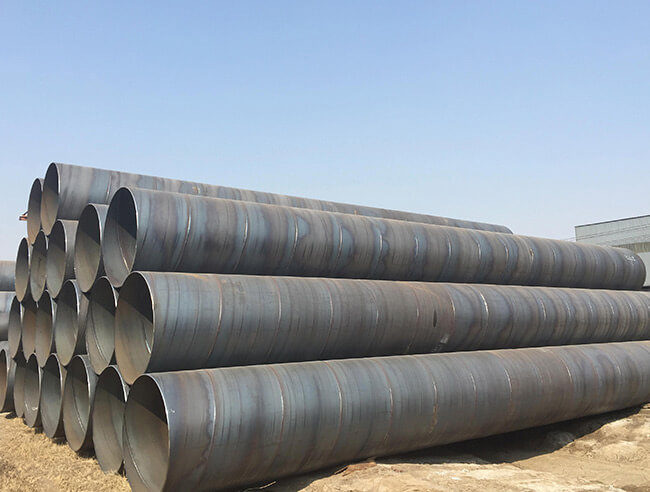

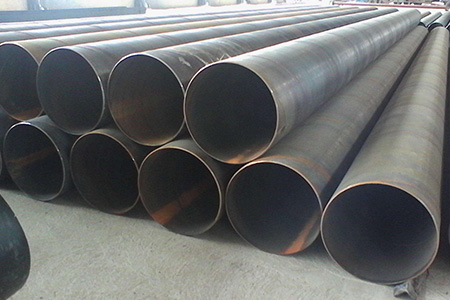

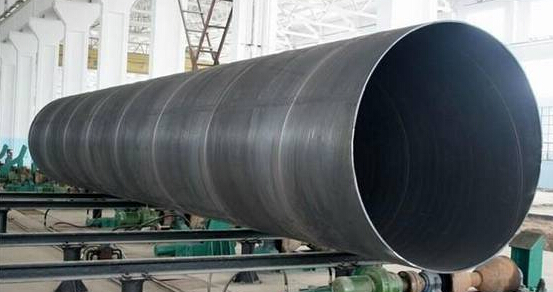

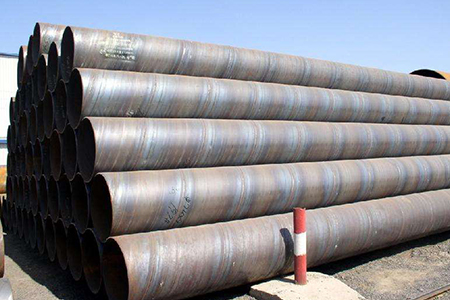

SSAW Steel Pipe( Spiral Submerged Arc Welding Pipe )

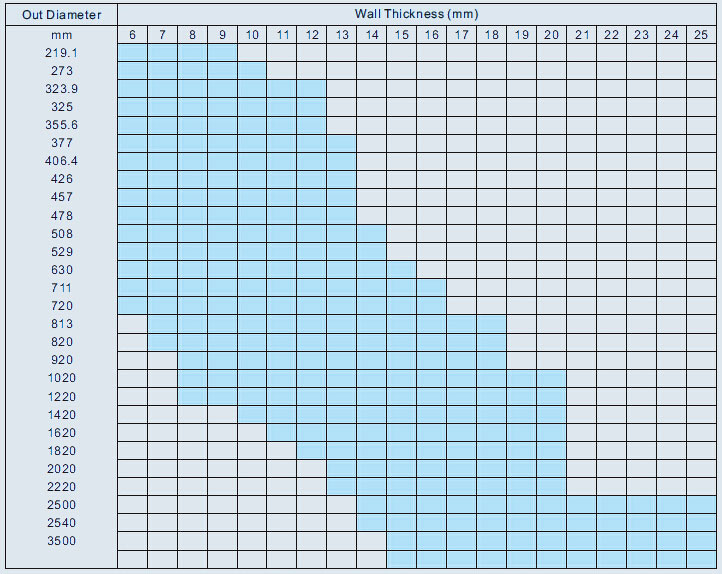

Sizes: OD(219-3200MM), WT(5-30MM)

Standards: AWWA C200, ASTM A139, and ASTM A252

Features:

Allowable yield strengths up to 70,000 psi
Fittings and fabrications to support nearly unlimited joint or body configuration
Field-welded and rubber-gasket joints
Butt-welded joint configuration available with machine-beveled ends
Joint lengths up to 55’ (nominal) for AWWA C200 and ASTM A139; lengths up to 80’ for ASTM A252

Pipe End:
square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled.

Surface:
Lightly oiled, Hot dip galvanized, Elector galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,  Fusion Bond Epoxy, 3-layers PE)

Packing:
Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield, strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Standard and Classfication

Classfication	Standard	Main Products
Steel Pipe for Fluid Service	GB/T 14291	Welded pipe for mine fluid sevice
	GB/T 3091	Welded pipe for low pressure fluid service
	SY/T 5037	Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
	ASTM A53	Black and hot-hipped galvanized welded and seamless steel pipe
	BS EN10217-2	Welded steel tybes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
	BS EN10217-5	Welded steel tybes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure	GB/T 13793	Longitudinally electric resistance welded steel pipe
	SY/T 5040	Spirally submerged arc welded steel pipe piles
	ASTM A252	Welded and seamless steel pipe piles
	BS EN10219-1	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivert conditions
	BS EN10219-2	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimmsions and sectional properties
Line Pipe	GB/T 9711.1	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
	GB/T 9711.2	Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
	API 5L PSL1/2	Line pipe
Casing	API 5CT	Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries

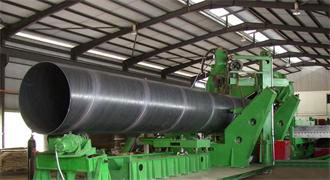

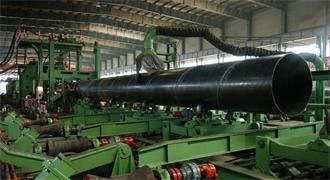

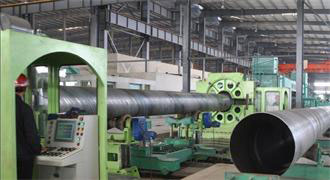

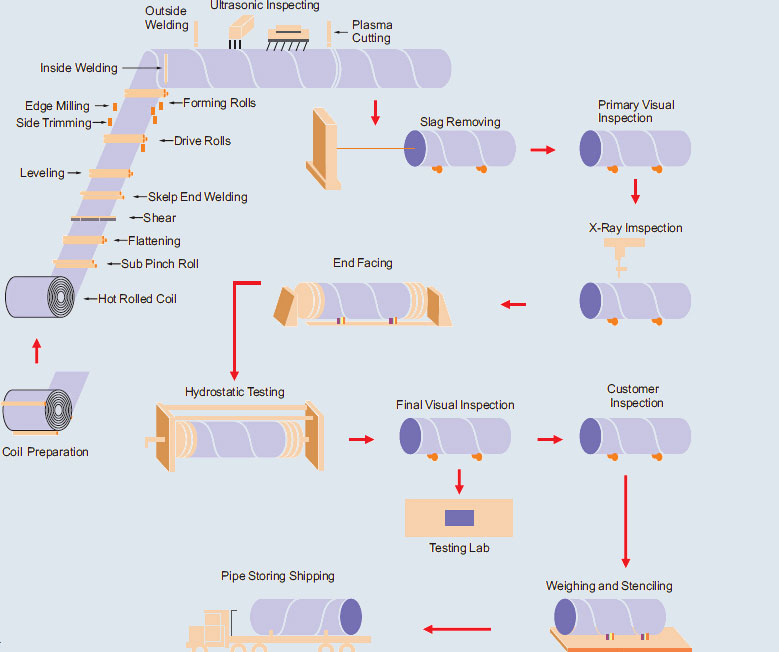

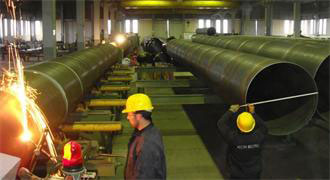

SSG's SSAW pipe is made of hot rolled coiled steel by automatic submerged arc weld under normal atmospheric temperature. There are 12 sets of modernized production line of SSAW pipe. The annual yield of SSAW pipe with outside diameter 219mm-3620mm, wall thickness 5-25.4mm and steel grade B-X80 is 1,000,000 tons. its two steel pipe production lines, one for spiral submerged arc welded (SAW) steel pipe and one for longitudinal submerged arc welded (SAW) steel pipe, are respectively comprised of two sets of main machines and 1 set of sizing equipment. The annual output comes to 120,000 ton for spiral SAW pipe and 200,000 ton for longitudinal SAW pipe.
