Elbow

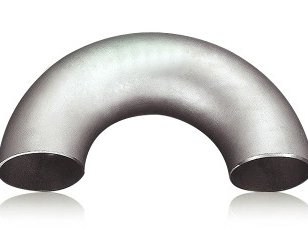

Elbow Type:45 Degree/90 Degree/180 Degree Elbow, Long Radius/Short Radius Elbow

Material & Standard: Carbon Steel --- ASME B16.9, ASTM A234 WPB

Stainless Steel --- ASTM A403 304/304L/310/310S/316/316L/317L/321

Alloy Steel --- ASTM A234 WP1/5/9/11/12/22/91

Specification: NPS: 1/2''~24''(Seamless), 24''~72''(Welded)

                         DN: 15~1200, WT: 2~80mm, SCH 5~XXS

Bending Radius: R=1D~10D, R=15D, R=20D

Surface: Light Oiling, Black Painting, Galvanizing, PE /3PE Anti-corrosion Coating

Packing: Packed in Wood Cabins/Wood Tray

Contact us :

Email:sales@sunrisesteelgroup.com

Whatsapp:+0086-13875806221

Phone:+0086-13875806221

Skype:wycsky1

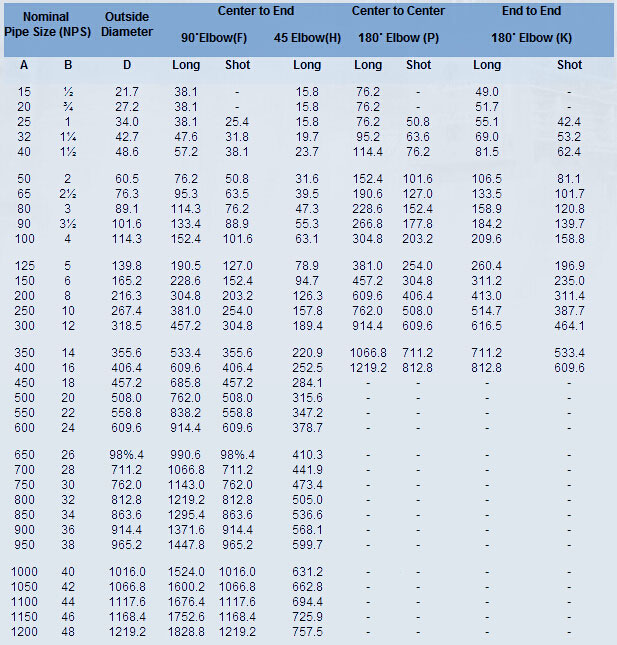

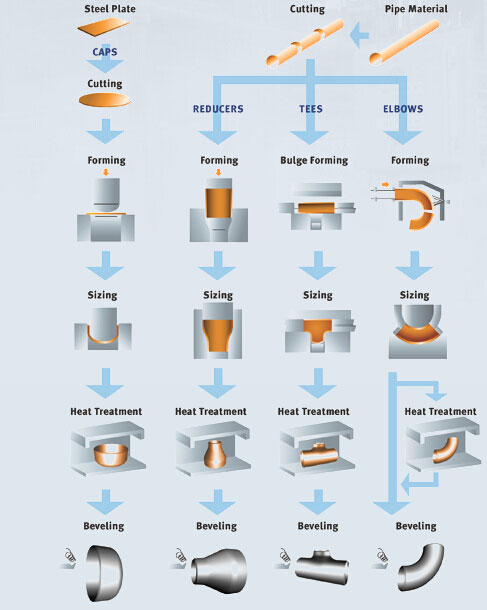

DescriptionProcessEquipmentDimension Inquiry

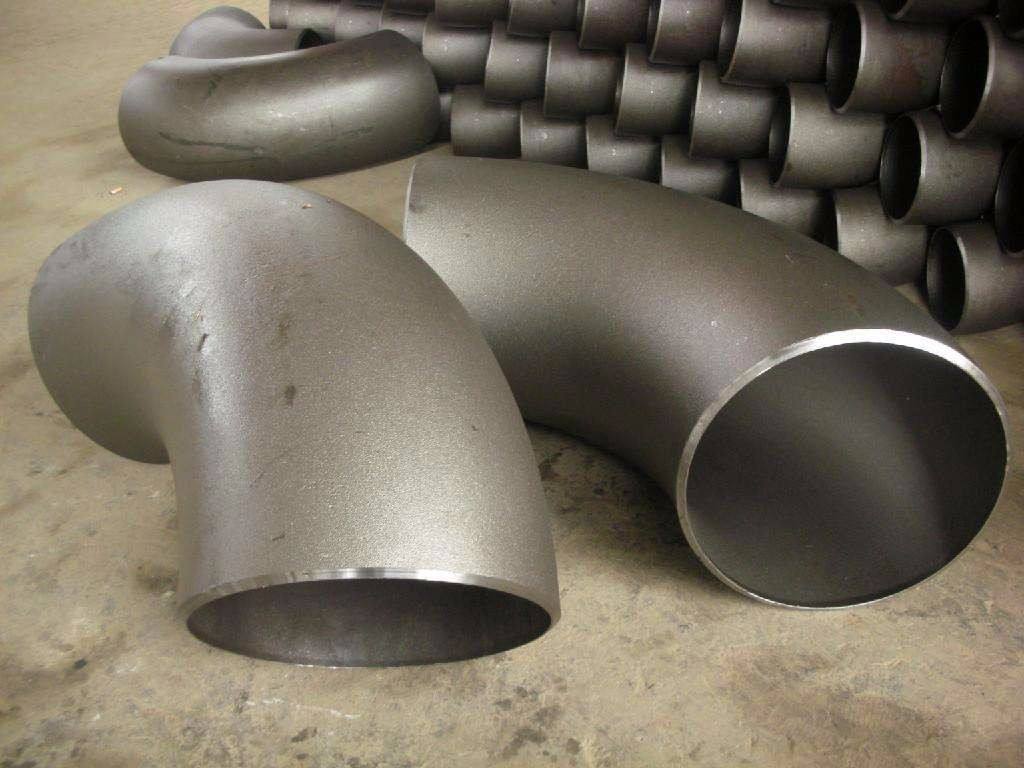

Pipe Elbow, Eblow Fittings

An elbow is a pipe fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90°, 45° or 180°. Elbows are also commonly referred as bends, and are available in a range of materials such as stainless steel, carbon steel, alloy steel, nickel alloys, duplex, and cupro nickel.

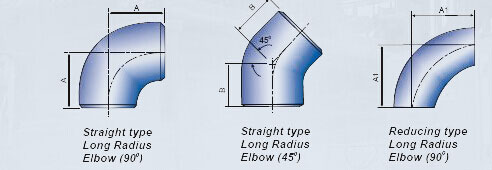

Also known as 90° bends, 90° elbows are manufactured as SR (Short Radius) elbows and LR (Long Radius) elbows. 45° elbows are typically made as LR (Long Radius) elbows.


Standards
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
