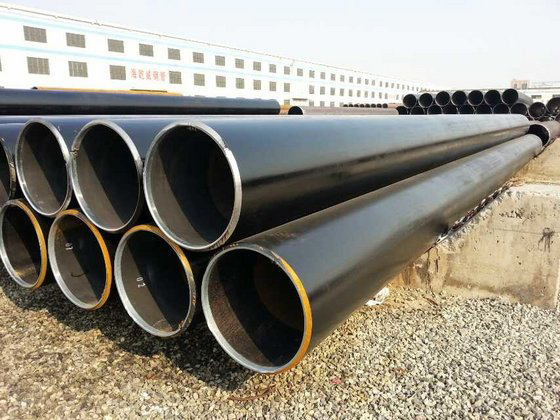

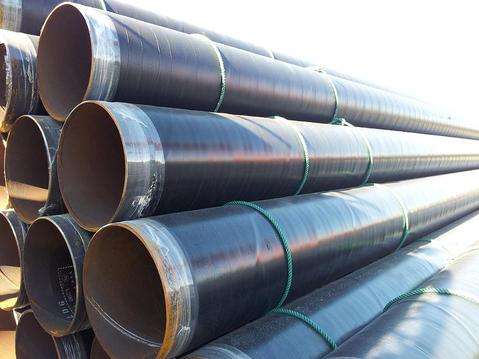

PE Coated LSAW Pipe


Type:PE Coated Pipe, 2PE Coated Pipe, 3PE Coated Pipe

Application: Used for for natural gas, petroleum, water & sewage, and pipe systems

Specification:  Outer diameter: 219mm~2020mm

                         Wall thickness: 5mm~25mm

                         LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard:DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.


Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electrci Resistance Welded

End: Plain End/Bevelled End, Burr Removed

Surface:Two Layer Polyethylene Coating (2mm~4.5mm)

Packing: Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

Contact us :

Email:sales@sunrisesteelgroup.com

Whatsapp:+0086-13875806221

Phone:+0086-13875806221

Skype:wycsky1

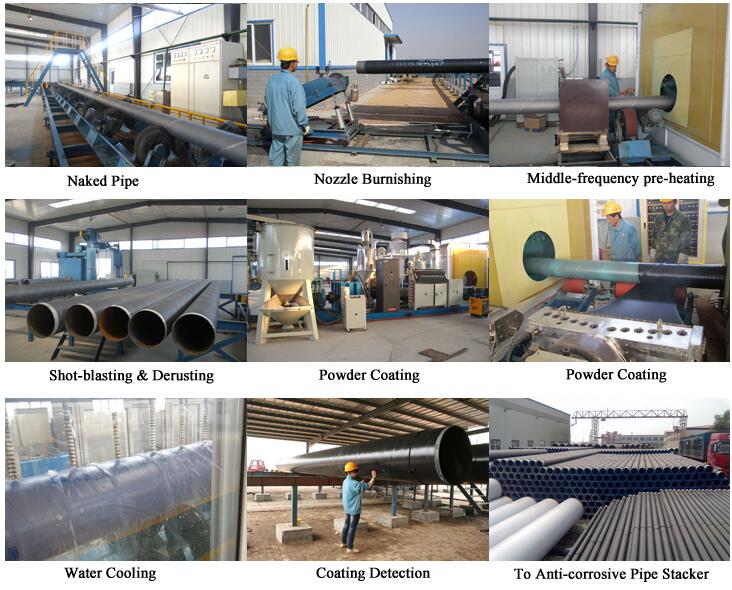

DescriptionProcessEquipment Inquiry

Type:PE Coated Pipe, 2PE Coated Pipe, 3PE Coated Pipe

Application: Used for for natural gas, petroleum, water & sewage, and pipe systems

Specification:OD: 219mm~2020mm

                        WT: 5mm~25mm

                        LENGTH: 4mtr, 6mtr, 12mtr, 18mtr, 21mtr

Coating Standard:DIN 30670, DIN 30671, DIN 30678, SY/T0413-2002 etc.

Pipe Type: Submerged Arc Welded (LSAW/SSAW), Electrci Resistance Welded

End: Plain End/Bevelled End, Burr Removed

Surface:Two Layer Polyethylene Coating (2mm~4.5mm)

Packing: Waterproof Paper wrapped, Steel Strips bundled, two tags on each bundle

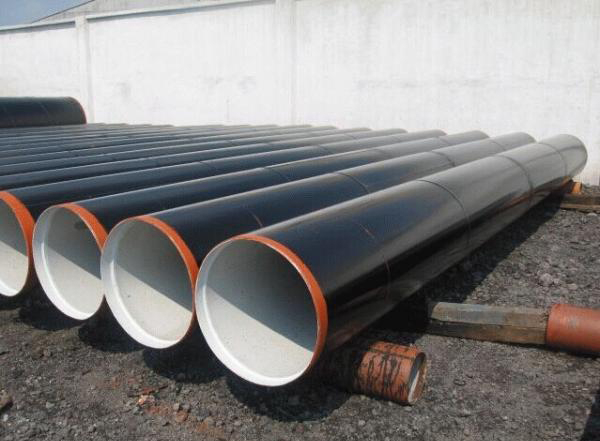

3 PE coating steel pipe can be also used in urban fuel gas piping system, storage tanks and groove piping system, protecting pipe in electricity and communication industries and water piping systems.

3PE anti-corrosion pipe three-tier structure:
the first layer of epoxy powder (FBE> 100um), the second adhesive (AD) 170-250um, the third layer of polyethylene (PE) 2.5-3.7mm.
Three of the integration, and steel pipe with a good solid coating. Diameter of Φ159-Φ1220.


2PE pipe anti-corrosion two-story structure, the first layer adhesive (AD), the second layer of polyethylene (PE), two kinds of integration.


Coating Material : Epoxy Powder, Adhesion, Polyethylene Or Polypropylene, Cement Inside


Looking forward to your favourable inquiry!
